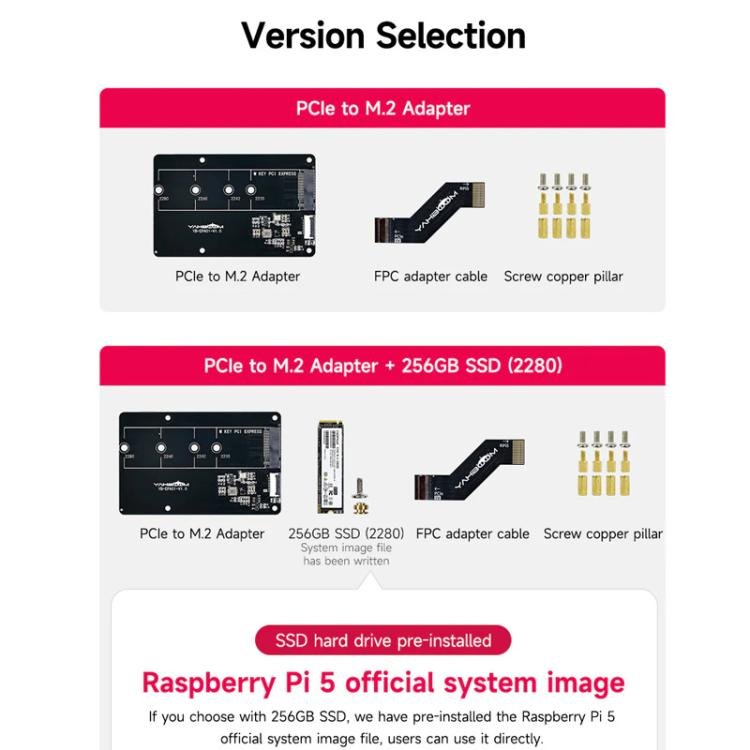

Yahboom PCIe To M.2 Adapter Expansion Board For Raspberry Pi 5 NVMe Expansion Board, Separate Board, Board + 256G SSD

1. This PCIe to M.2 expansion board specially designed for Raspberry Pi 5 is designed to bring more possibilities to your Raspberry Pi projects. With this expansion board, you can easily connect a high-speed M.2 NVMe solid-state drive to the Raspberry Pi 5, greatly increasing data transfer speed and storage capacity. It supports M.2 solid-state drives of various sizes (such as 2230, 2242, 2260 and 2280), and the installation process is simple and intuitive, so you can get started quickly without complicated settings. It not only expands the storage space of Raspberry Pi 5, but also provides better support for your computing tasks, making your Raspberry Pi 5 capable of more complex application scenarios.

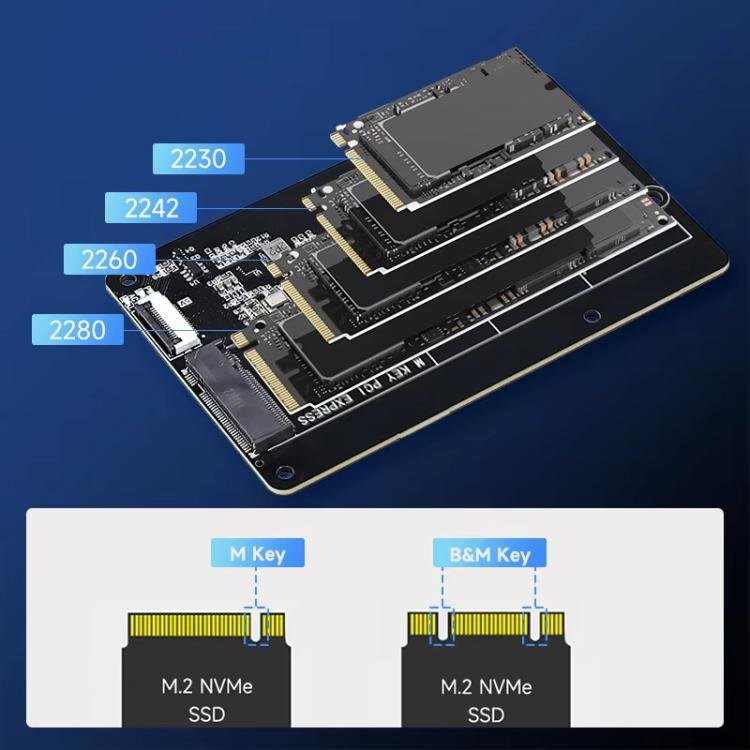

2. Compatible with four sizes of solid state drives (2230/2242/2260/2280).

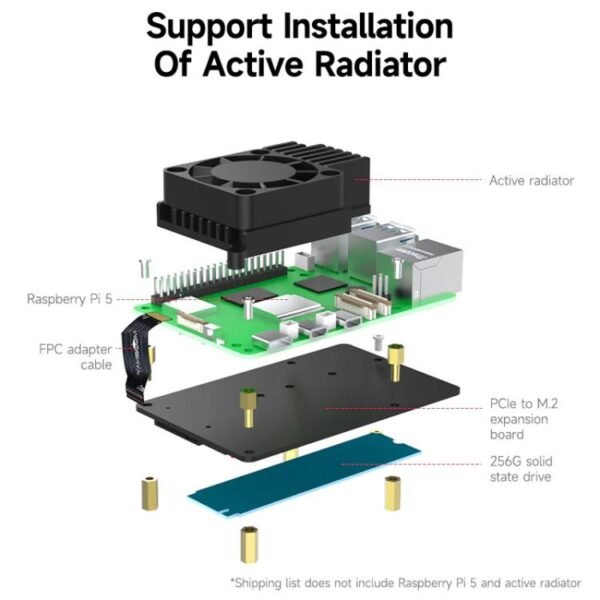

3. The stack is installed on the back of the Raspberry Pi without affecting heat dissipation and case installation.
4. Can improve data transmission speed, suitable for projects with high-speed storage requirements.
5. Using high-quality materials and precision manufacturing processes to ensure stable operation and long-term durability.

Parameters:
1. M.2 M-Key: NVMe protocol, supports M.2 SSD hard disk (2230/2242/2260/2280)
2. SSD function: supports an SSD hard disk to boot the system, and storage expansion or only storage expansion
3. LED indicator: power indicator, ACT hard disk status indicator
4. M.2 device power supply current: 3A
5. PCle 2.0 interface rate: theoretical peak transfer rate 500MB/s
6. Compatible with PCIe standards: Gen2 and Gen3

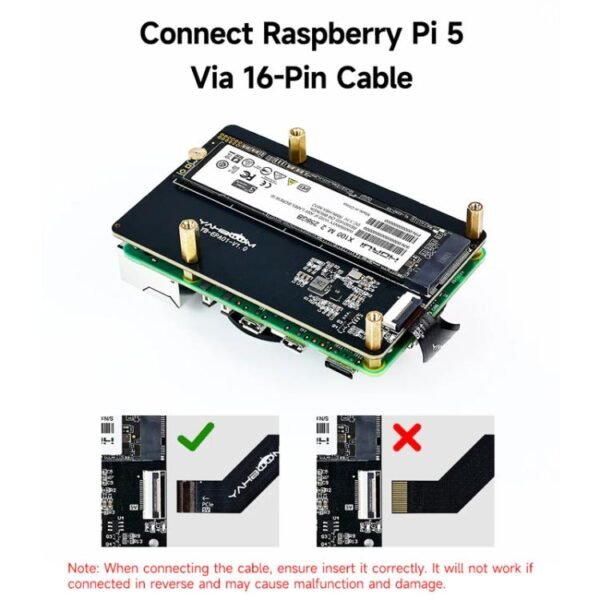

7. FPC line parameters: 0.5mm pitch FPC line
8. Screw copper column: M2.5 x 10 dual-channel 4; M2.5 x 5+6 single-channel 4
9. Size: 88 mm x 56 mm x 1.7 mm
10. Weight: 5.2g
