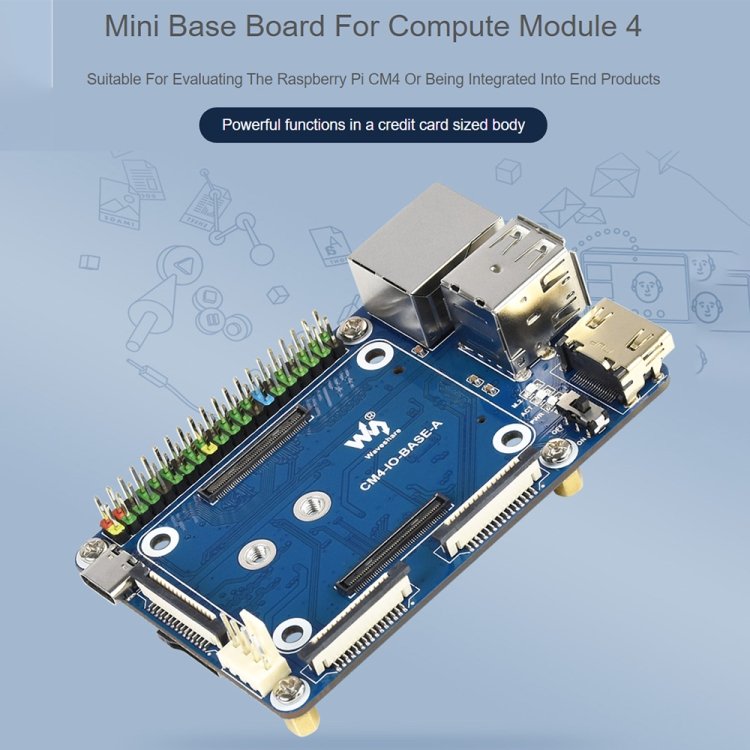

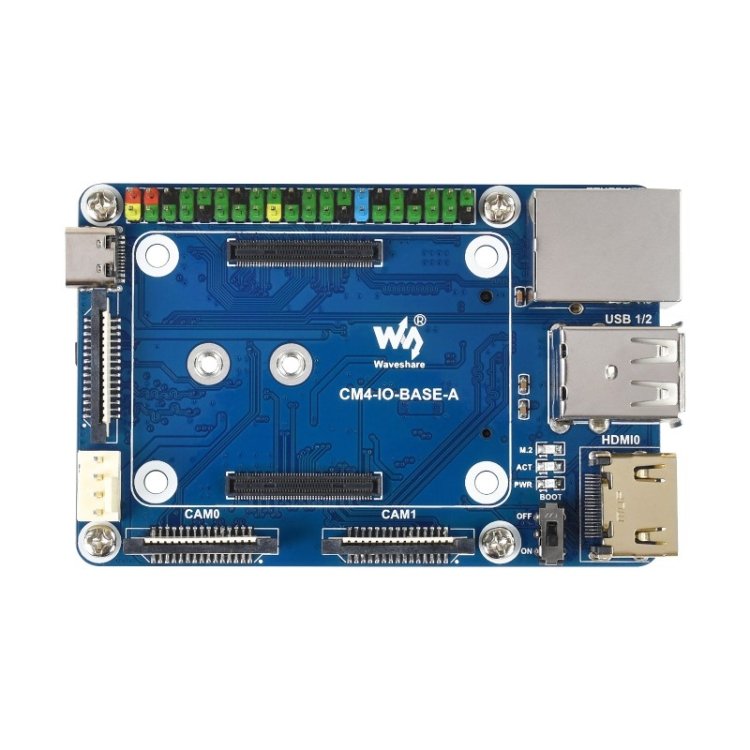

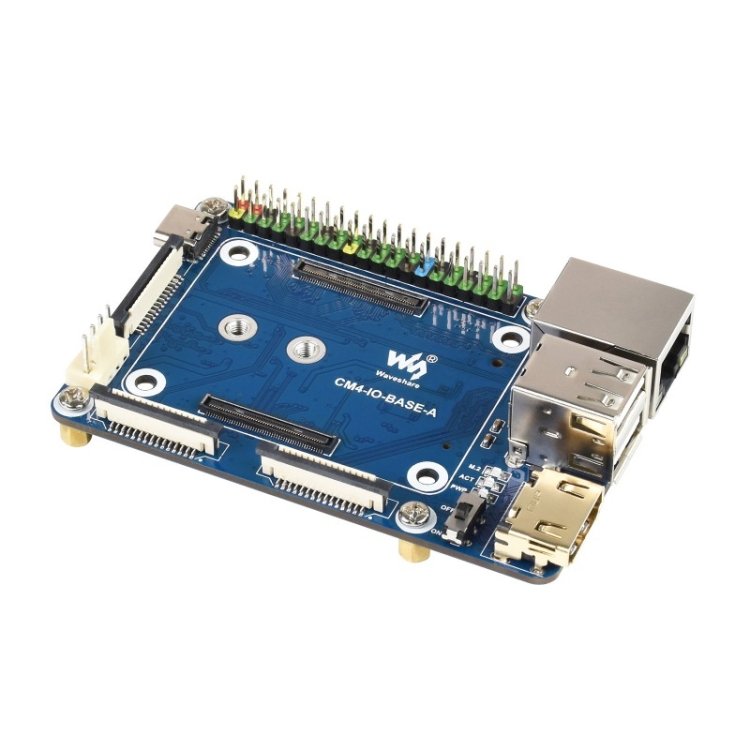

Waveshare Mini Base Board A for Raspberry Pi Compute Module 4
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 2
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 3
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 4
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 5
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 6
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 7
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 8
Waveshare Mini Base Board A for Raspberry Pi Compute Module 4 - Image 9

Waveshare Mini Base Board A for Raspberry Pi Compute Module 4

Availability:

999999 in stock
Compare

₹2,800.00

999999 in stock

Compare

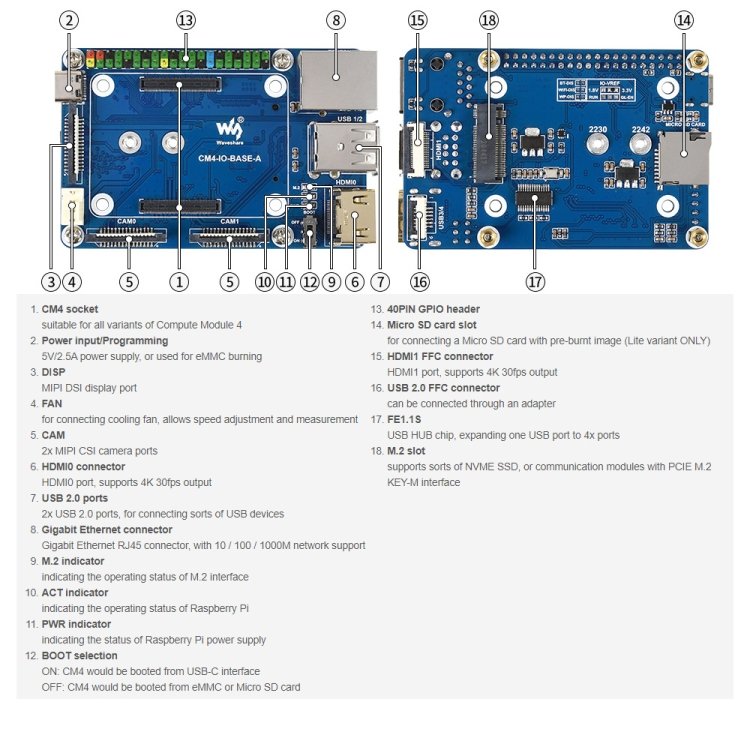

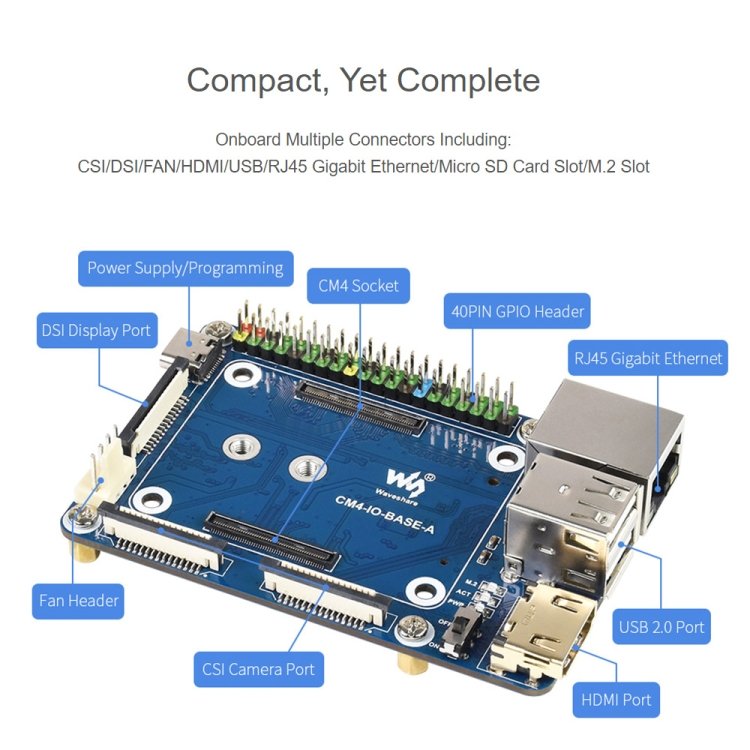

1. USB:
– USB 2.0 x 2
– USB 2.0 x 2 (via FFC connector)

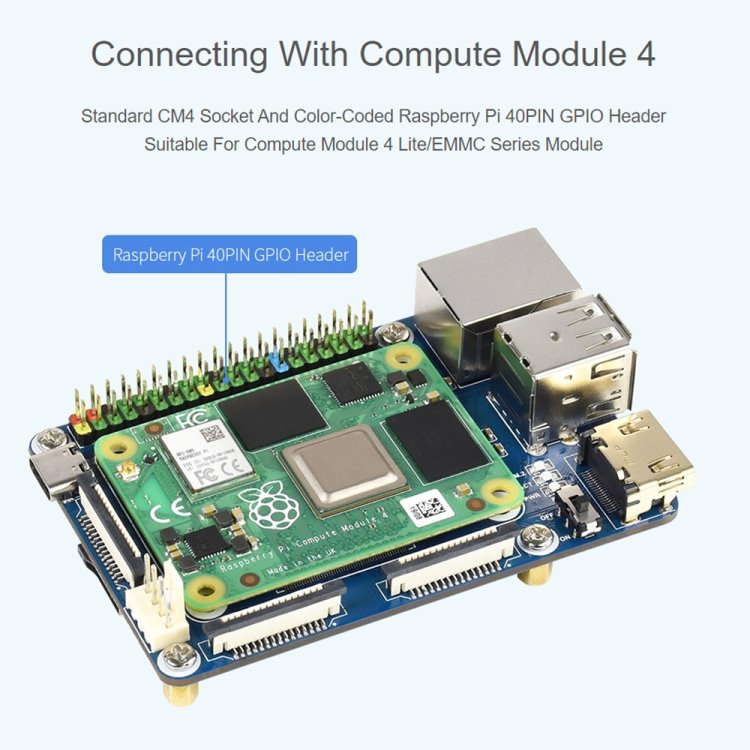

2. GPIO: Raspberry Pi 40 PIN GPIO x 1

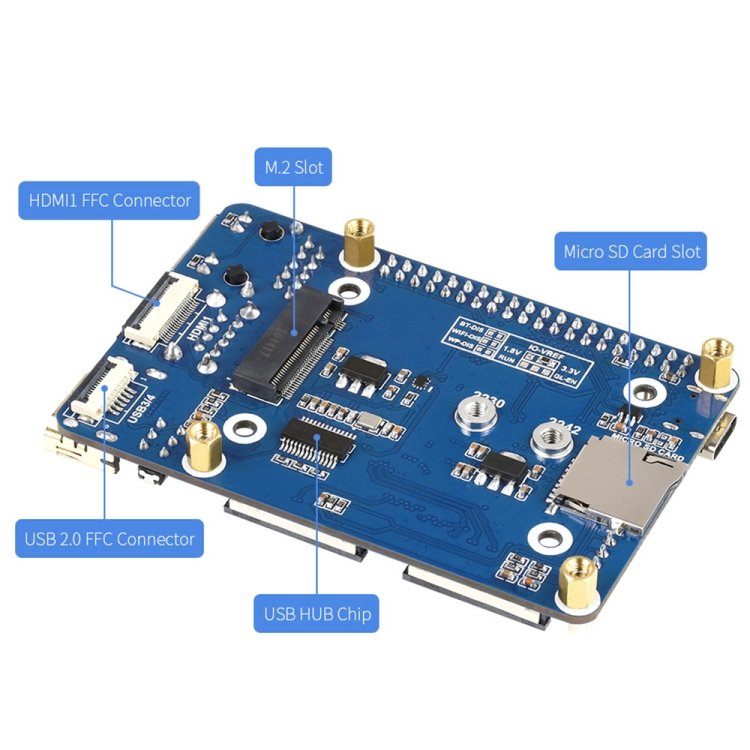

3. Header: M.2 slot x 1
4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output
5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC)
6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
7. Power input: 5V
8. FAN: 5V / 12V (no fan control)
9. RJ45 Ethernet: Gigabit Ethernet

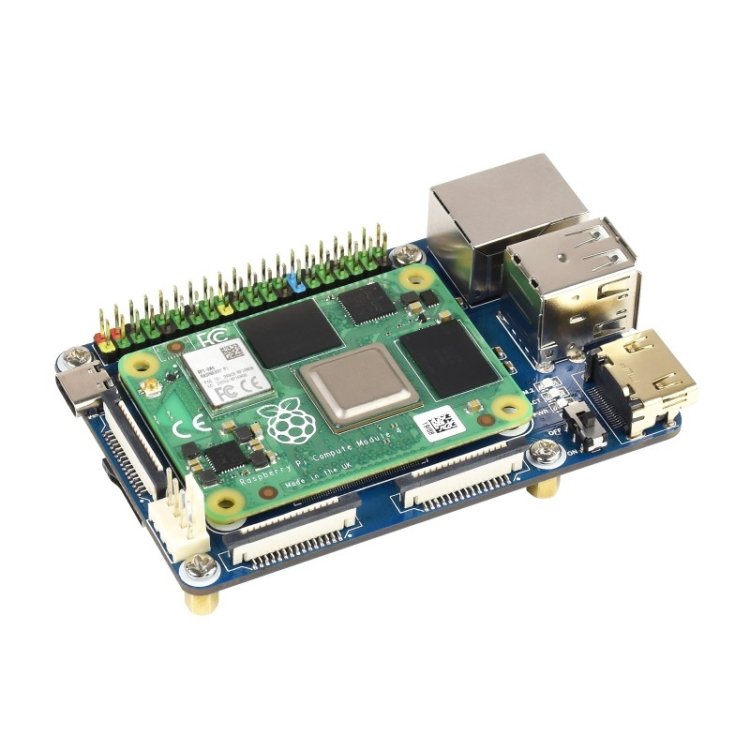

10. CM4 slot: Suitable for all variants of Compute Module 4
11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

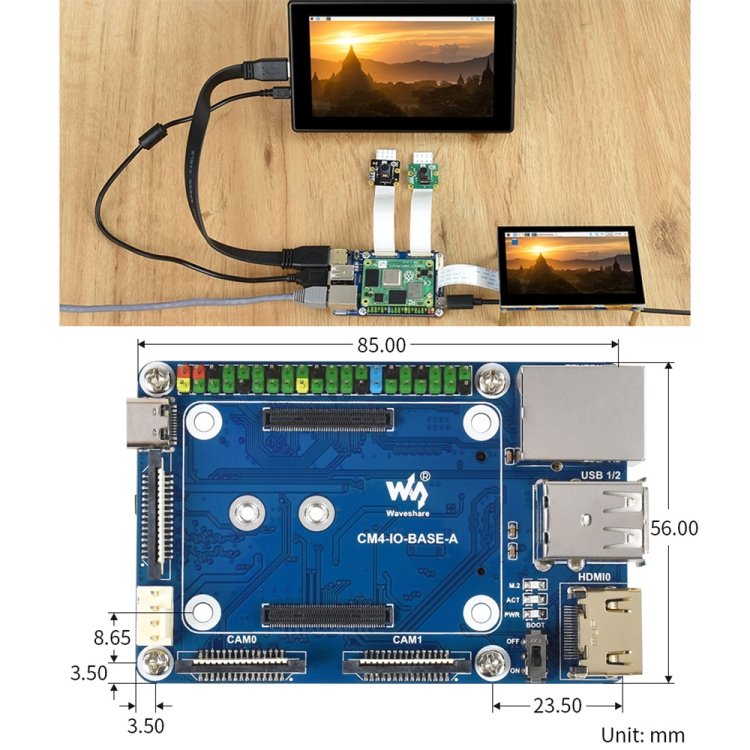

12. Size: 85.0 x 56.0mm

Specification:
Package Weight
One Package Weight 0.07kgs / 0.16lb
One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
Qty per Carton 200
Carton Weight 12.60kgs / 27.78lb
Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch
Loading Container 20GP: 566 cartons * 200 pcs = 113200 pcs
40HQ: 1314 cartons * 200 pcs = 262800 pcs
