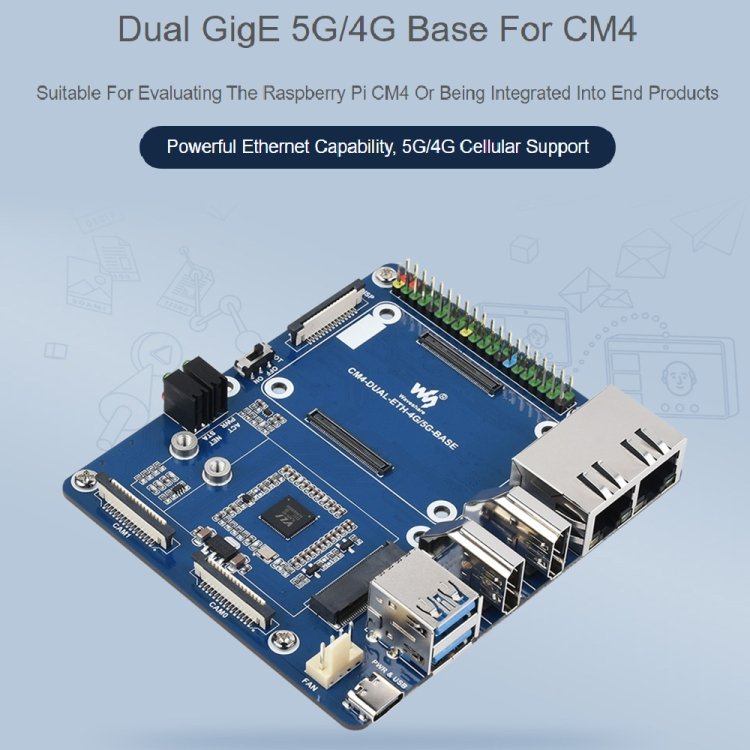

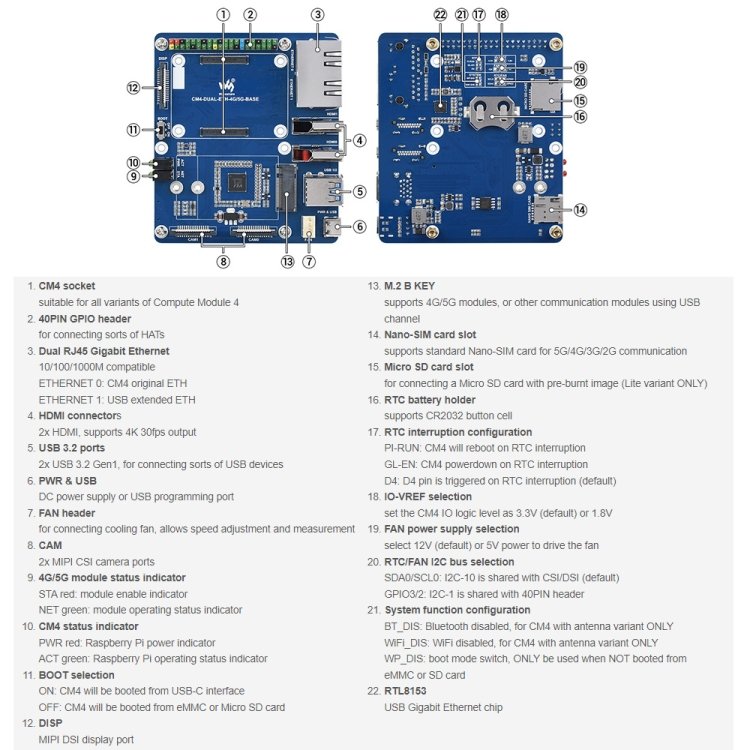

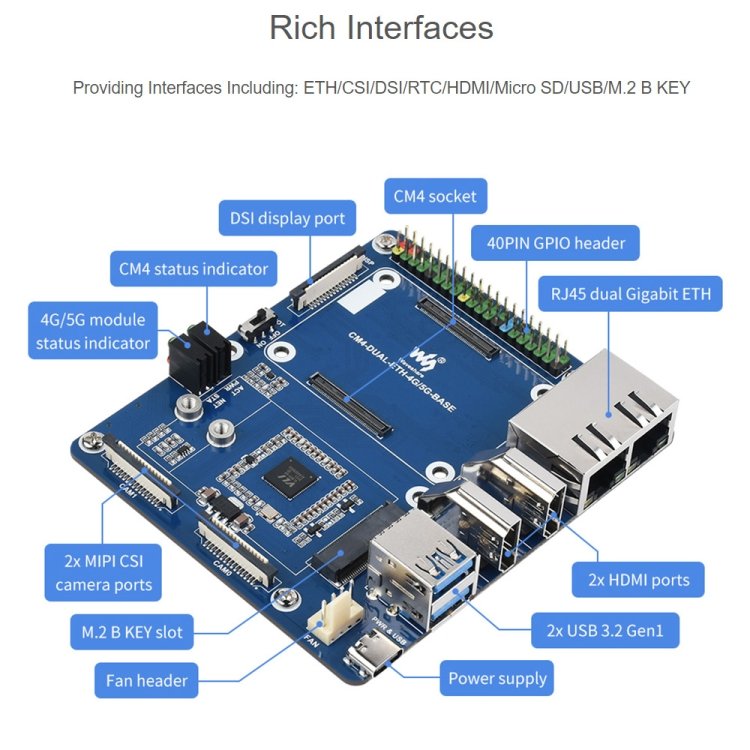

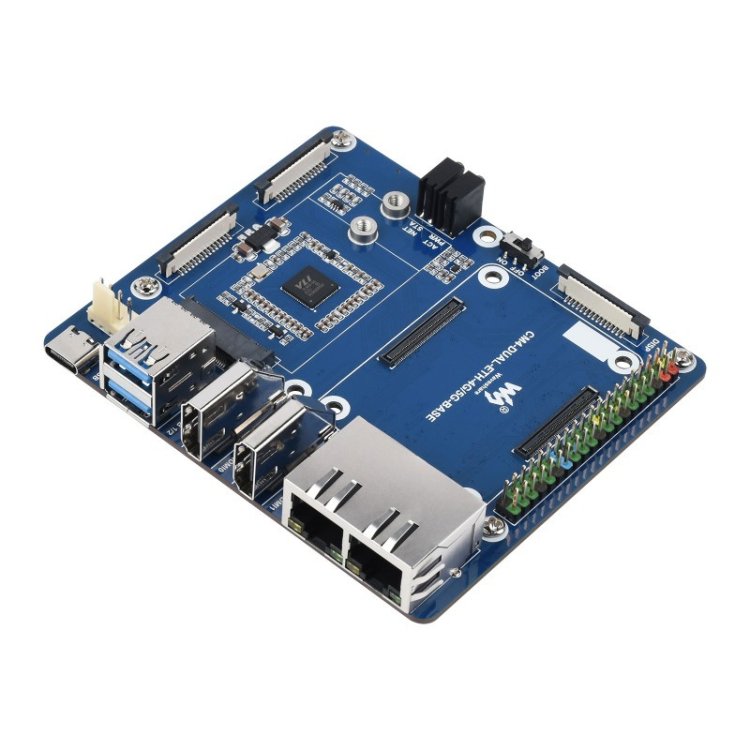

Specifications

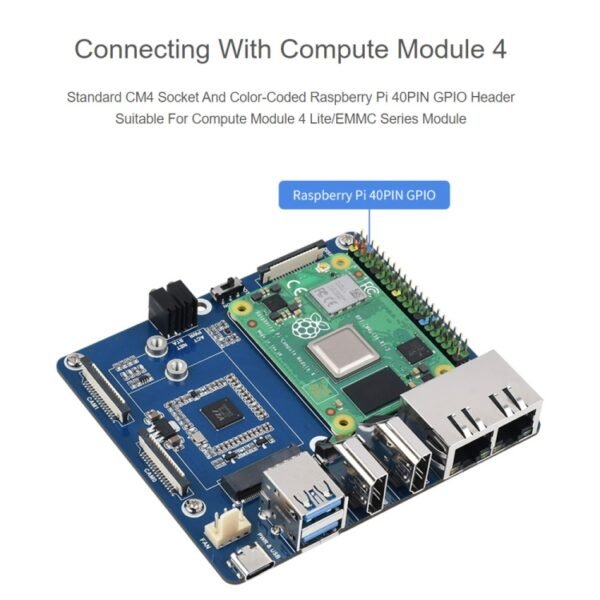

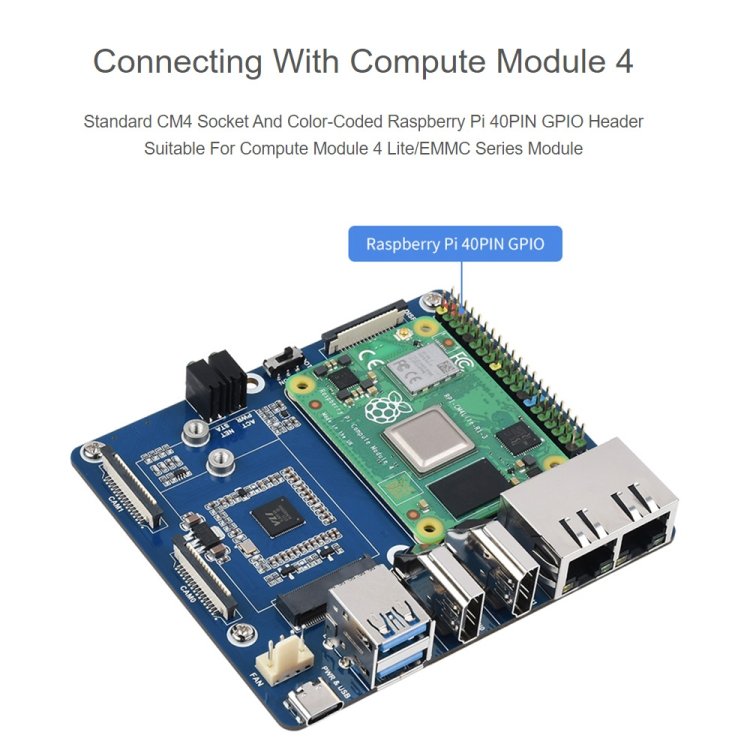

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Network:
– Ethernet: Dual Gigabit Ethernet RJ45
– M.2 B KEY, for connecting 5G / 4G module
– Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB 3.2 Gen1 x 2
4. PIN header: Raspberry Pi 40PIN GPIO headerx 1
5. Display: MIPI DSI port (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
7. Video: HDMI x 2, supports 4K 30fps output

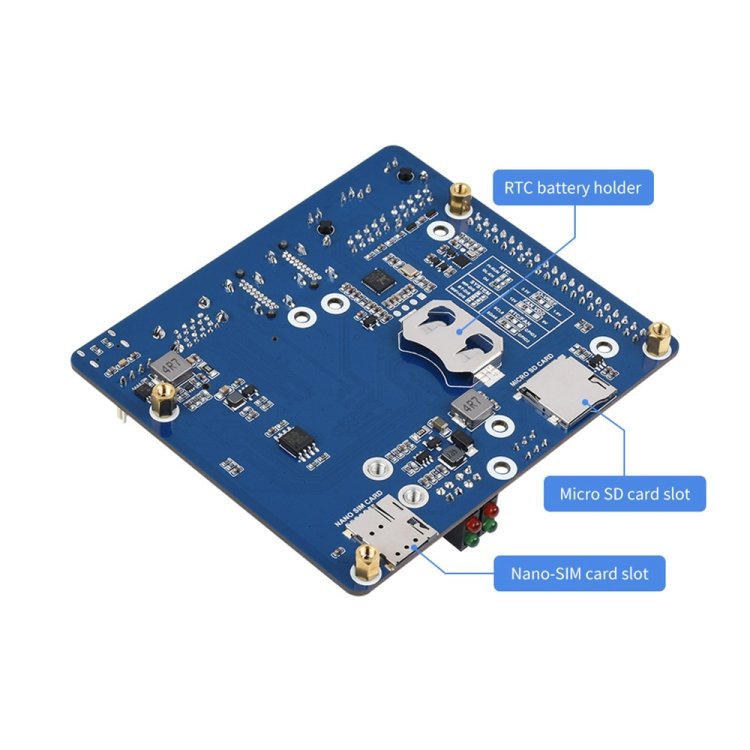

8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
9. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V/2.5A

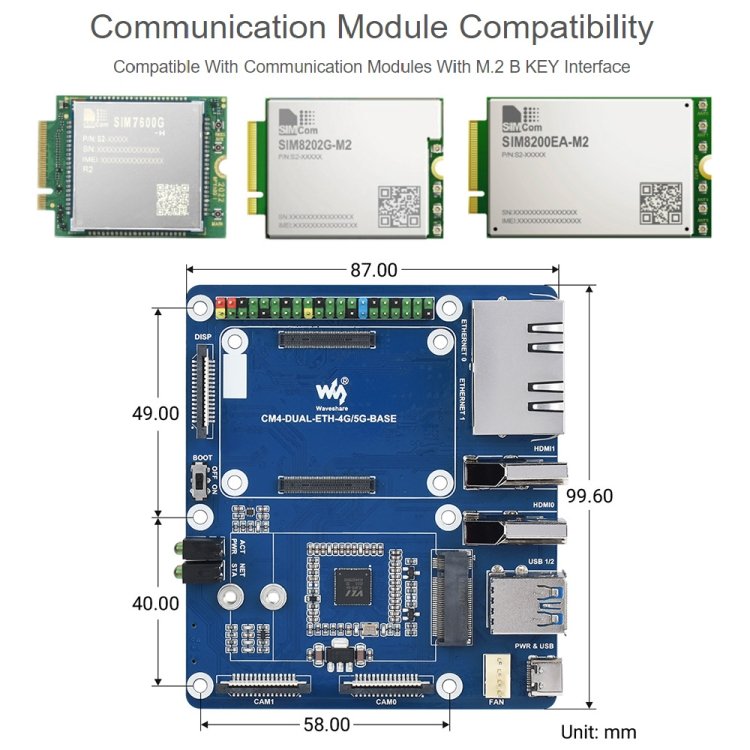

12. Size: 99.6 x 87.0mm
Specification:
| Package Weight |
| One Package Weight |
0.09kgs / 0.21lb |
| One Package Size |
15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch |
| Carton Weight |
17.80kgs / 39.24lb |
| Carton Size |
46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 566 cartons * 200 pcs = 113200 pcs
40HQ: 1314 cartons * 200 pcs = 262800 pcs |
|
