Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V
Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V - Image 2
Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V - Image 3
Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V - Image 4
Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V - Image 5
Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V - Image 6

Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16×2 Characters, 3.3V/5V

Availability:

999999 in stock
Compare

₹1,700.00

999999 in stock

Compare

1. VCC: 3.3V – 5V power input
2. GND: ground wire
3. SCL: I2C clock pin
4. SDA: I2C data pin
5. Communication interface: I2C
6. LCD controller: AiP31068
7. Working voltage: 3.3-5V
8. Working temperature: minus 20-70 degrees Celsius
9. Display panel: Character LCD

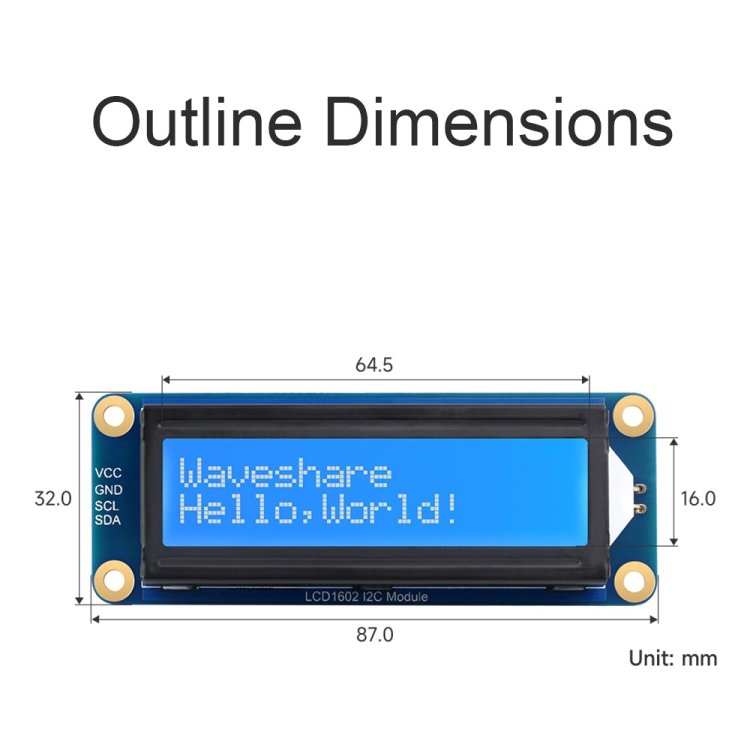

10. Display size: 64.5 x 16.0mm
11. Characters: 16 x 2
12. Product size: 87.0 x 32.0 x 13.0mm
13. Built-in character LCD panel LCD1602
14. I2C control interface, only need two signal pins, saving IO resources
15. Compatible with 3.3V/5V working voltage
16. Comes with online development resources and manuals (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

Specification:
Package Weight
One Package Weight 0.06kgs / 0.13lb
One Package Size 10cm * 4cm * 3cm / 3.94inch * 1.57inch * 1.18inch
Qty per Carton 500
Carton Weight 17.00kgs / 37.48lb
Carton Size 30cm * 50cm * 56.7cm / 11.81inch * 19.69inch * 22.32inch
Loading Container 20GP: 313 cartons * 500 pcs = 156500 pcs
40HQ: 727 cartons * 500 pcs = 363500 pcs
