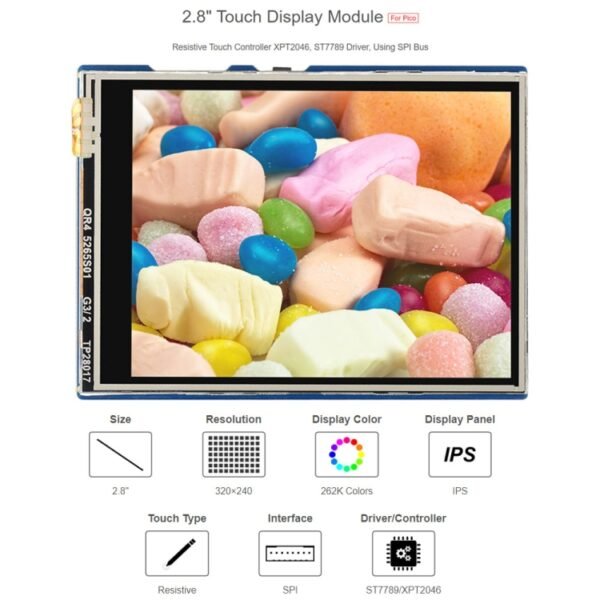

WAVESHARE 2.8 inch 262K Colors 320 x 240 Pixel Touch Display Module for Raspberry Pi Pico, SPI Interface

Availability:

999999 in stock


2,400.00

999999 in stock

Compare

Features
1. 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
2. Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
3. MicroSD card slot for storing images and direct displaying them easily
4. Programmable backlight control, power saving
5. Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification
1. Operating voltage: 5V
2. Resolution: 320×240 pixels
3. Display color: 265K colorful
4. Communication interface: SPI
5. Display panel: IPS
6. Display size: 57.60 x 43.20 mm
7. Pixel size: 0.18x 0.18 mm
8. Driver: ST7789
9. Touch Controller: XPT2046
10. Size: 70.20 x 50.20 mm

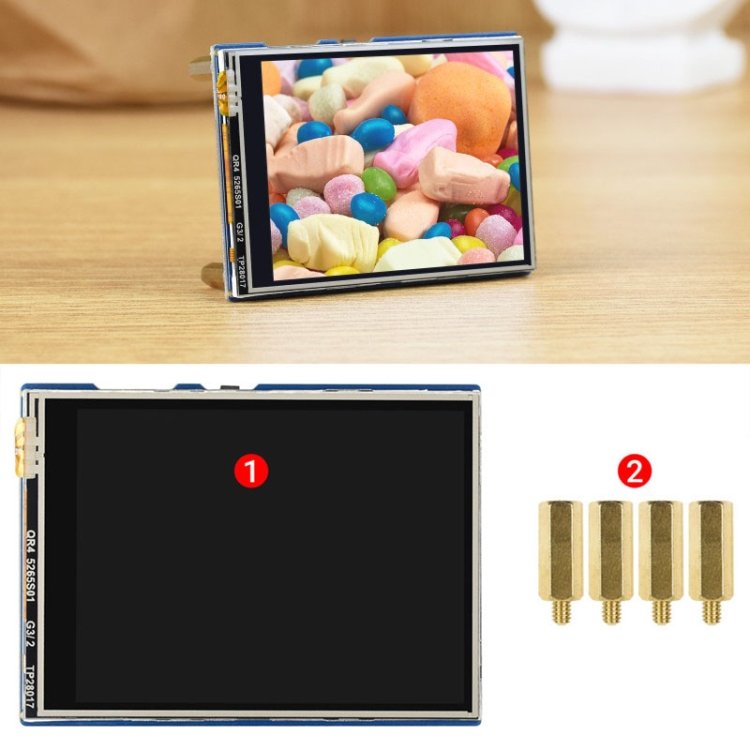

Package List
1. Pico-ResTouch-LCD-2.8 x1
2. Standoffs pack x1

Specification:
Package Weight
One Package Weight 0.08kgs / 0.17lb
One Package Size 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
Qty per Carton 200
Carton Weight 13.00kgs / 28.66lb
Carton Size 42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch
Loading Container 20GP: 620 cartons * 200 pcs = 124000 pcs
40HQ: 1439 cartons * 200 pcs = 287800 pcs
