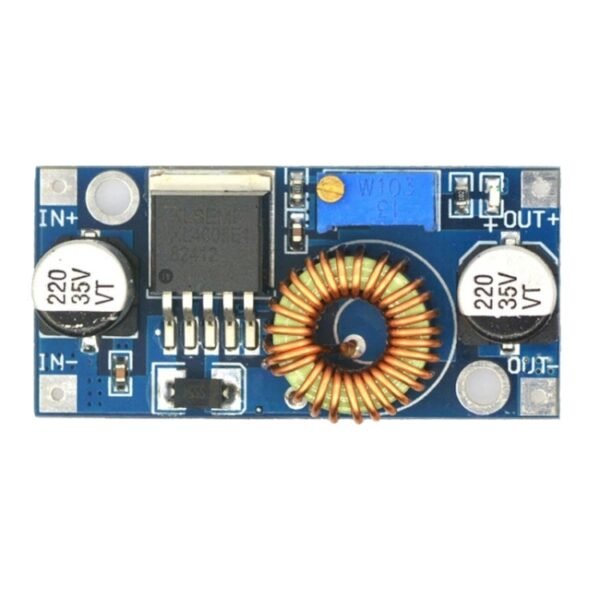

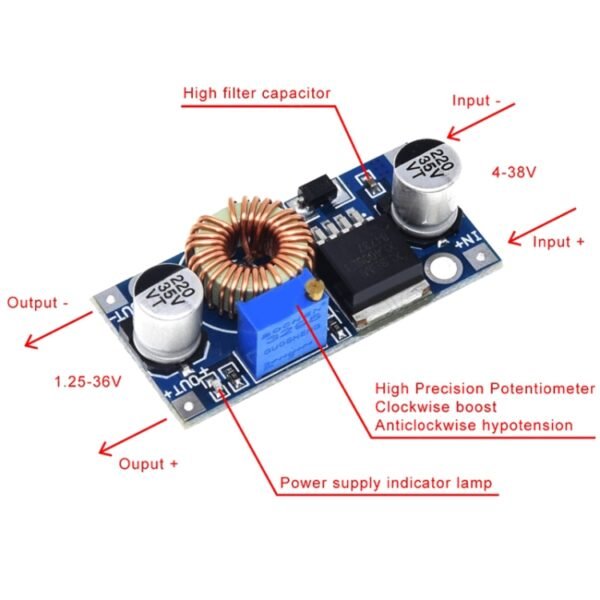

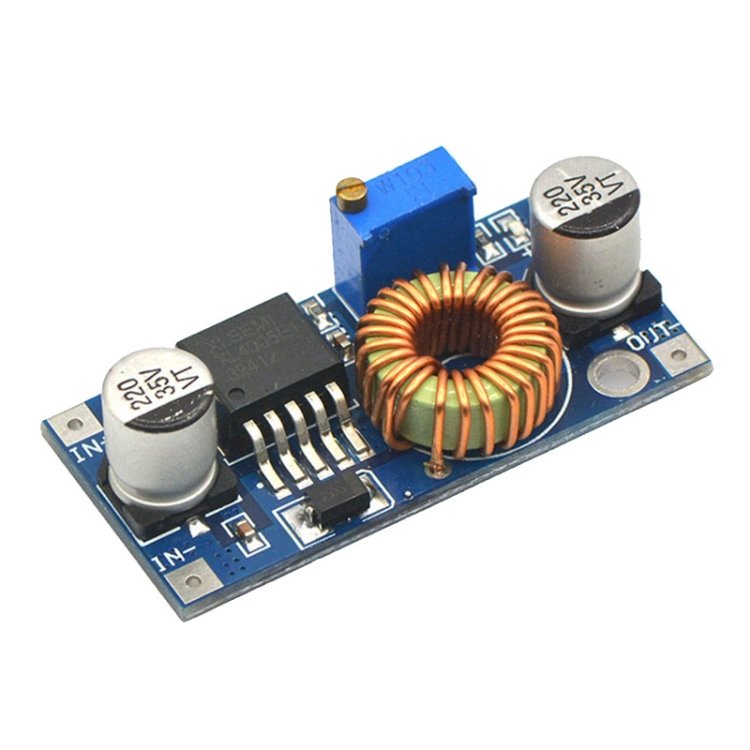

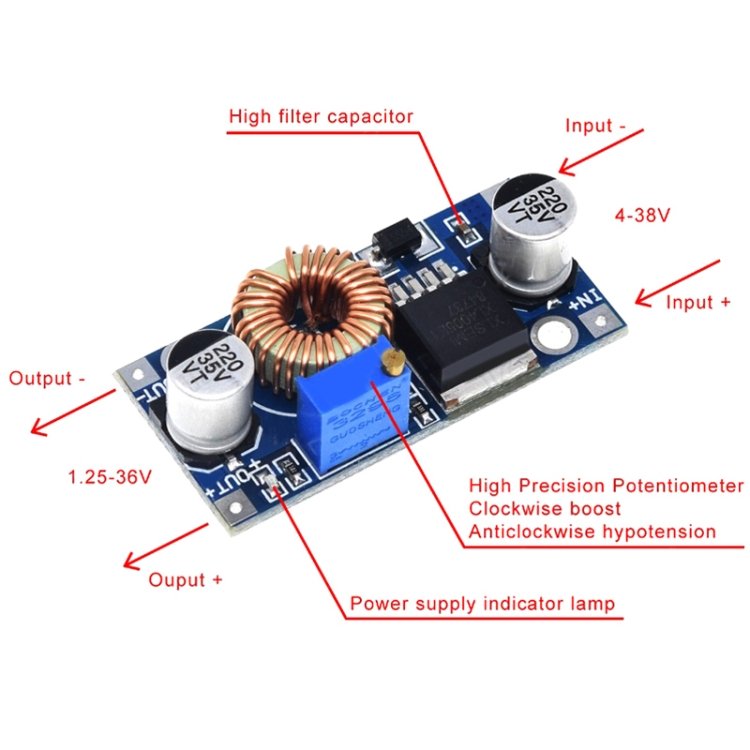

1. Use high power magnetic surround inductor and high current control chip, small size, high power, high efficiency
2. Application areas: DIY mobile power, car power supply, communication equipment power supply, etc.
3. Module nature: non-isolated buck
4. Rectification mode: non-synchronous rectification
5. Input voltage: 5V-32V
6. Output voltage: 0.8V-24V
7. Conversion efficiency: up to 90
8. Switching frequency: 300KHz
9. Output ripple: 30mV (no load)
10. Load regulation rate: about 0.5%
11. Voltage regulation rate: about 2.5%
12. Operating temperature: -40 – 85 degrees Celsius
13. External Dimensions: Approx. 4.3 x 2.1 x 1.4cm
Specification:
| Package Weight |
| One Package Weight |
0.04kgs / 0.10lb |
| One Package Size |
8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch |
| Carton Weight |
21.00kgs / 46.30lb |
| Carton Size |
50cm * 34cm * 34cm / 19.69inch * 13.39inch * 13.39inch |
| Loading Container |
20GP: 461 cartons * 500 pcs = 230500 pcs
40HQ: 1071 cartons * 500 pcs = 535500 pcs |
|
