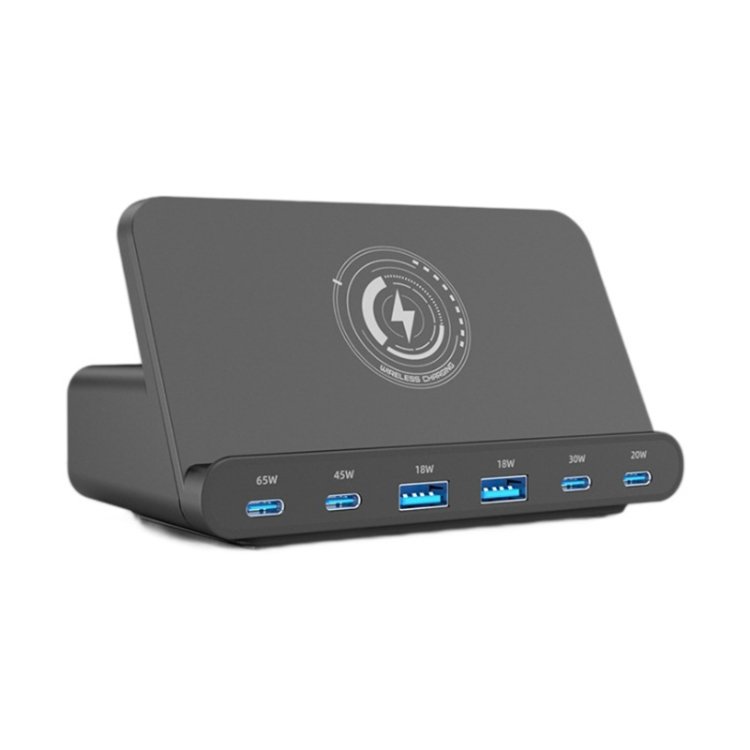

1. Using GaN technology, safe and fast charging, small size

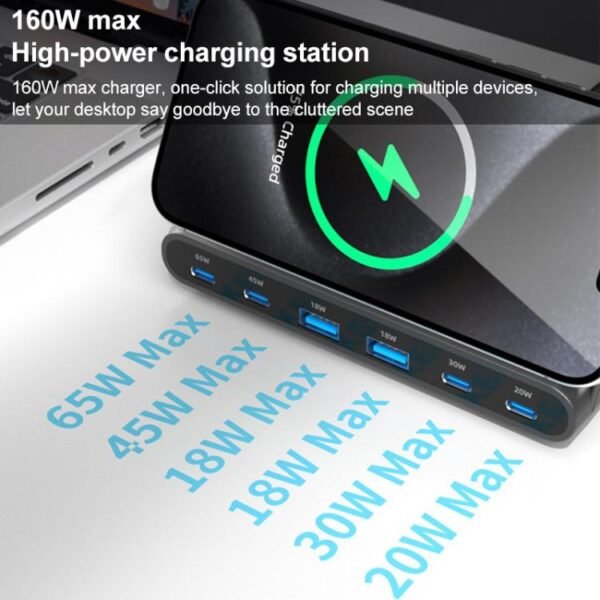

2. 160W high power, can charge seven devices at the same time
3. Including 2 x QC3.0 US interfaces, 4 x PD Type-C interfaces and a QI standard wireless charging area
4. Single-port PD fast charging can reach 65W, which can charge laptops

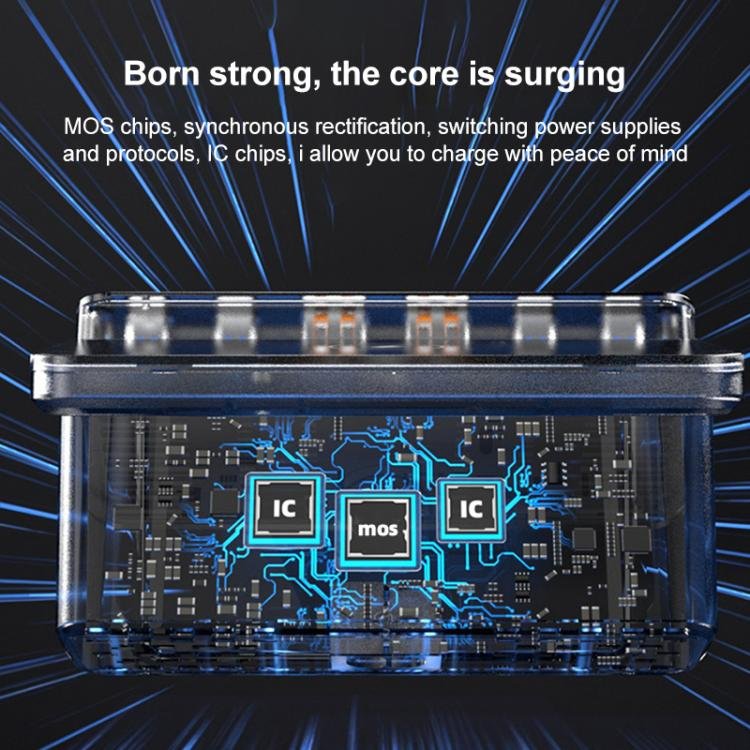

5. High-wattage MOS chip, with advantages such as high voltage resistance, high frequency, and stable performance.
6. Synchronous rectification chip, stable output current and voltage, low loss, high efficiency, and no damage to equipment.
7. Shell material: ABS+PC
8. Output:
Type-C1: 5V/3A, 9V/3A, 12V/3A, 20V/3.25A, PPS 3.3-11V/5A, 65W max
Type-C2: 5V/3A, 9V/3A, 12V/3A, 20V/3.25A, PPS 3.3-11V/4A, 45W max
USB-A1/A2: 5V/3A, 9V/2A, 12V/1.5A, 18W max
Type-C3: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, PPS 3.3-11V/3A, 30W max
Type-C4: 5V/3A, 9V/2.22A, 12V/1.67A, 20W max
C2+A1: 12W+12W
A2+C3: 12W+12W
C1+C2+C3+C4: 65W+45W+30W+20W=60W max
QI wireless output: 15W/10W/7.5W/5W
9. Size: 133x76x80mm
10. Weight: 258g
Specification:
| Package Weight |
| One Package Weight |
0.55kgs / 1.21lb |
| One Package Size |
16cm * 11cm * 10cm / 6.3inch * 4.33inch * 3.94inch |
| Carton Weight |
21.50kgs / 47.40lb |
| Carton Size |
52cm * 46cm * 34cm / 20.47inch * 18.11inch * 13.39inch |
| Loading Container |
20GP: 327 cartons * 40 pcs = 13080 pcs
40HQ: 761 cartons * 40 pcs = 30440 pcs |
|
