Parameter:
1. After connecting, it needs to be charged for a while before outputting
2. Charging voltage: DC4.2V
3. Continuous discharge current: 4A
4. Overcharge detection voltage: 4.28V
5. Overcharge detection delay time: 1S
6. Overcharge recovery voltage: hysteresis overcharge detection voltage 0.2V
7. Over-discharge detection voltage: 2.8V
8. Over-discharge detection delay time: 128ms
9. Over-discharge recovery voltage: 3.0V
10. Overcurrent detection voltage: 200mv
11. Overcurrent detection current: 4A
12. Delay time of overcurrent detection: 12ms megohm
14. Working temperature range: -40 to 50 degrees Celsius
15. Size: 15×3.1mm
Kind tips:

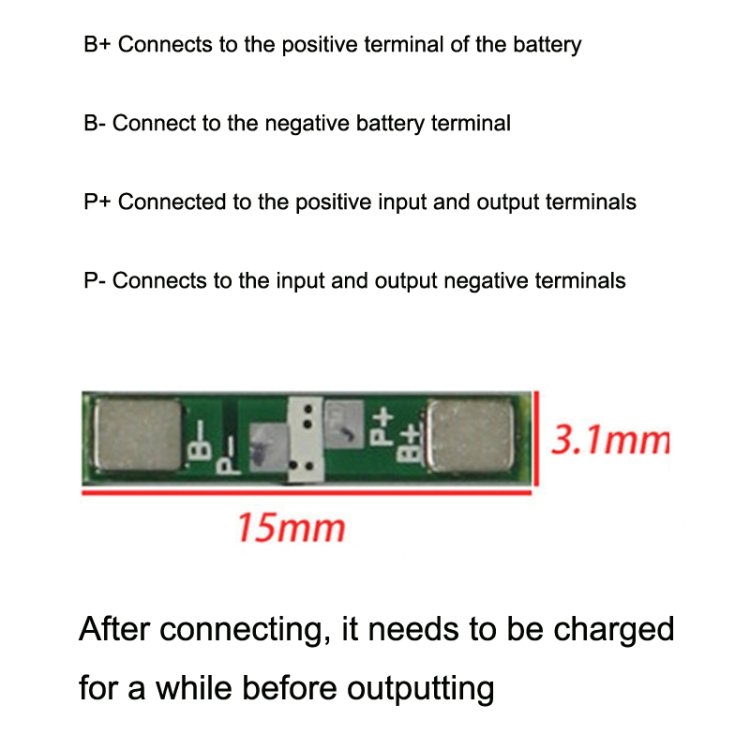

1. Because (lithium battery protection board) belongs to the particularity of semi-finished products in electronic products; be sure to understand the wiring diagram before assembly; avoid wrong wiring
2. Incorrect wiring or unintentional contact of wire ends with components may cause damage
Specification:
Package Weight |
One Package Weight |
0.10kgs / 0.23lb |
One Package Size |
5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch |
Carton Weight |
30.00kgs / 66.14lb |
Carton Size |
50cm * 30cm * 30cm / 19.69inch * 11.81inch * 11.81inch |
Loading Container |
20GP: 592 cartons * 3000 pcs = 1776000 pcs 40HQ: 1375 cartons * 3000 pcs = 4125000 pcs |
|
